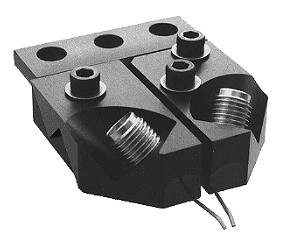

PICOPROBE® MODEL 110H

The PICOPROBE® MODEL 110H is a high performance microwave probe which incorporates our patented coaxial design techniques and has inherent low loss and low dispersion characteristics.

Like all of our Picoprobe microwave probes, the Model 110H has customer-preferred features such as: individually spring loaded Beryllium-Copper tips which provide reliable contacts even when probing non-planar structures; direct viewing of probe tips for accurate positioning; and can be designed to almost any pitch and footprint.

Smaller pitches and Ground-Signal-Ground footprints are recommended for optimum performance. Connection to the Model 110H is via a female 1.0 mm connector. Please contact our office for additional information regarding the performance specifications of the Model 110H Picoprobe.

FEATURES Durable Patented Coaxial Design DC to 110 GHz Insertion loss 1.5 db (110H) Return loss 15 db (110H) Individually Spring-loaded Contacts Utilizes the 1.0 mm female connector

	Typical uncalibrated performance of a Model 110H-GSG-100-P while touching a 50 Ohm load on our CS-5 Calibration Substrate.
	Typical insertion loss of a Model 110H-GSG-100-P.

---
